Case Study: Wuhan Greenland Center-Central China’s Iconic Landmark with High-Performance PVB Interlayers
2026-03-27
Project Overview

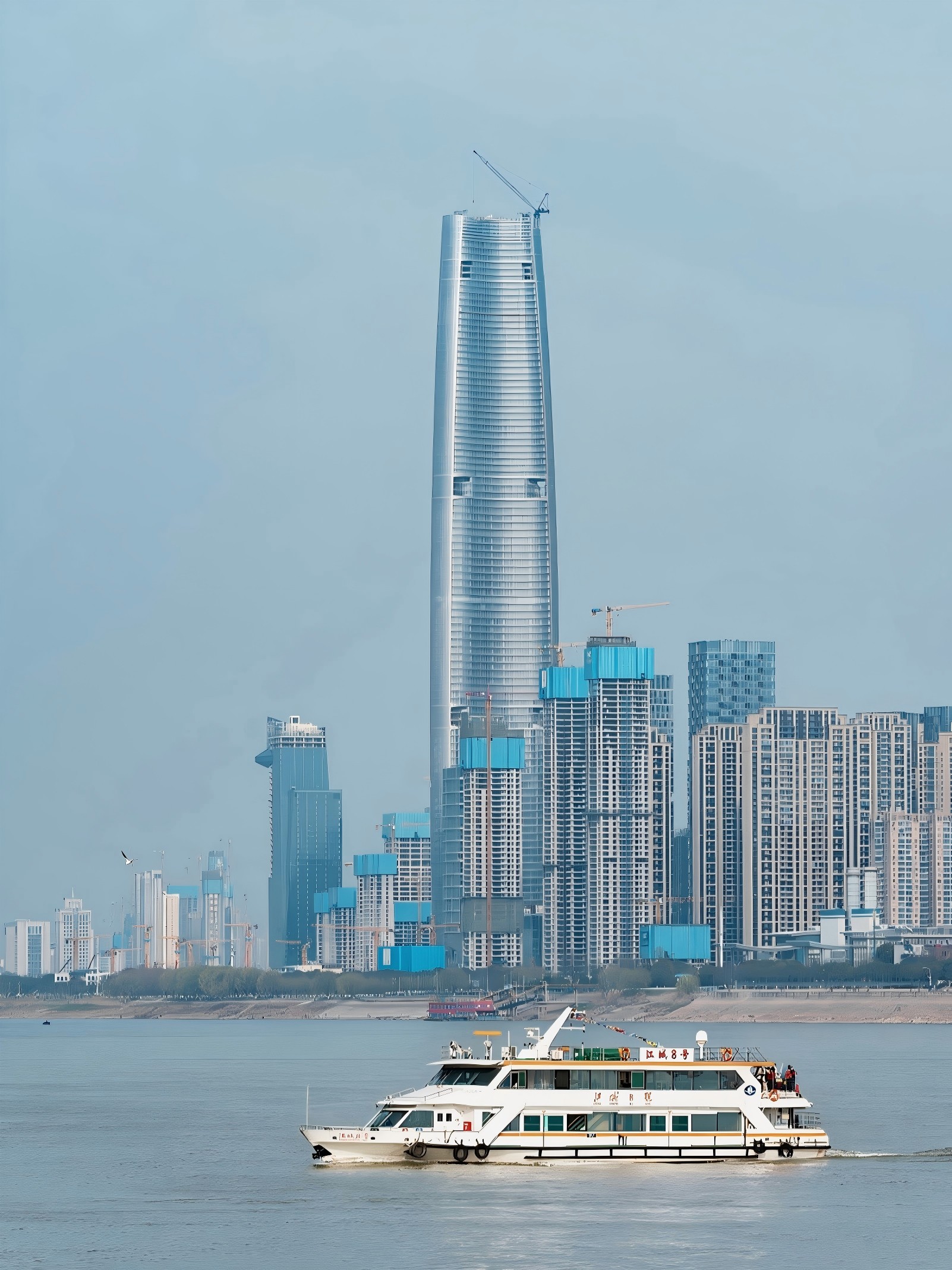

As the centerpiece of the Wuhan International Financial City, the Wuhan Greenland Center stands as a testament to modern architectural ambition. Designed by the world-renowned firm Adrian Smith + Gordon Gill (AS+GG), this 475-meter supertall skyscraper features a sophisticated aerodynamic tripod shape with "breathing" curtain walls.
The project demanded the highest standards for its 130,000 m² glass facade, utilizing ultra-clear laminated insulating glass.
INNOLAMIN proudly served as the PVB Interlayer Supplier, providing the essential safety and structural bonding for this massive architectural undertaking.
Technical Contributions & Solutions

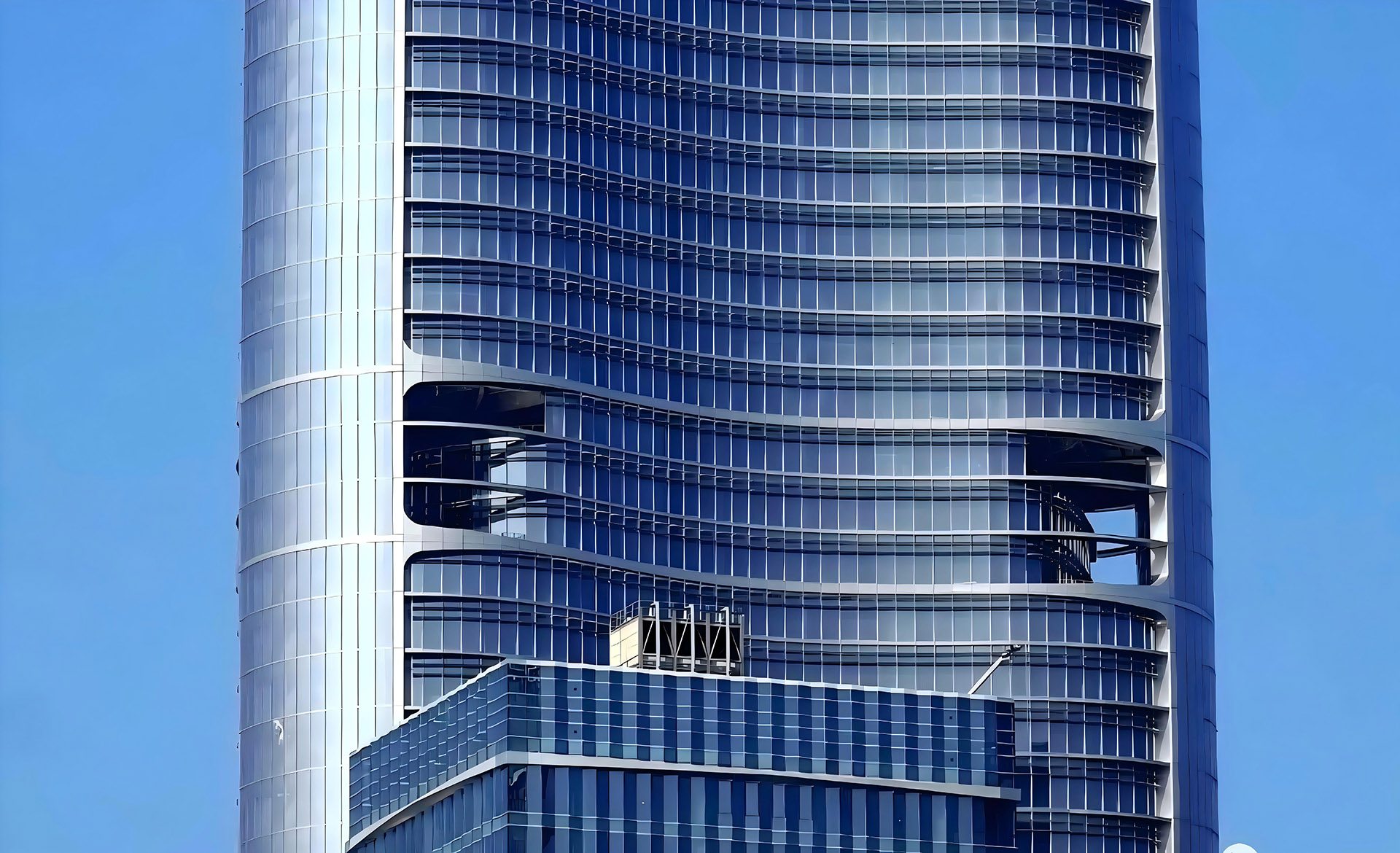

The building’s streamlined design includes specialized wind slots to mitigate pressure. Our structural-grade PVB interlayers provide the necessary shear modulus and adhesion to ensure the facade can withstand wind gusts up to Level 12 and seismic activity up to Magnitude 8. Even in the rare event of glass breakage, our interlayer maintains the "post-breakage" structural integrity, preventing fallout.
To complement the ultra-white glass specified for the project, our PVB interlayers were engineered with an extremely low Yellowness Index (YI) and high visible light transmittance (VLT). This ensures that the building maintains its iconic "crystal" aesthetic without the greenish tint common in standard laminated glass.
Working in tandem with the building’s breathing curtain wall system, our interlayers contribute to a significant reduction in thermal transfer (U-value). Furthermore, the acoustic damping properties of our PVB film effectively isolate high-altitude wind noise and urban clamor, ensuring a premium interior environment for 5-star hotels and Grade-A offices.
With 18,400 glass panels and a high degree of geometric variation (only 3 identical panels per floor), we provided high-precision slit-to-size rolls and specialized technical support to ensure seamless lamination and edge stability for every unique unit.
High-Performance Architectural PVB Interlayer
Our architectural-grade PVB interlayer is engineered to provide superior structural reinforcement for super-high-rise building skins. In demanding environments such as the Wuhan Greenland Center, the interlayer acts as a high-tenacity bonding agent that significantly enhances the load-bearing capacity of the facade. It is specifically formulated to maintain post-breakage integrity; in the event of glass fracture, the film remains bonded to the fragments, preserving the building envelope and preventing glass fallout—a critical requirement for meeting stringent seismic and high-altitude safety standards.
Designed to withstand the immense dynamic pressures found at altitudes exceeding 400 meters, our PVB solution exhibits high tensile strength and an optimized shear modulus. This allows the laminated glass units to absorb and dissipate energy from extreme wind gusts and thermal expansion without compromising the adhesion between the glass plies. The material’s elastic properties are balanced to accommodate structural shifts and vibrations inherent in tripod-shaped skyscraper designs, ensuring the curtain wall remains a stable, singular unit under stress.
To meet the Crystal aesthetic vision of the Wuhan Greenland Center, our interlayers are manufactured using high-purity resins that offer exceptional visible light transmittance. We prioritize a neutralized color profile by maintaining an extremely low yellowness index, ensuring that the natural transparency of ultra-clear (low-iron) glass is fully preserved. This optical precision prevents visual distortion and color shifting, allowing for a seamless, high-fidelity appearance across the 18,400 unique glass panels that comprise the building’s complex geometry.
Given the humid, riverside climate of the Wuchang district, our PVB interlayers are treated for superior edge stability and moisture resistance. The chemical formulation is designed to resist delamination and bubbling even when exposed to fluctuating temperatures and atmospheric moisture over long-term cycles. Furthermore, the interlayer provides a robust barrier against ultraviolet radiation, protecting interior materials from degradation while contributing to the overall thermal efficiency of the "breathing" curtain wall system by reducing solar heat gain.
Our interlayer technology is fully compatible with advanced high-performance coatings and structural silicone sealants used in modern multi-functional facade systems. The film is produced with a controlled surface roughness to facilitate efficient de-airing during the lamination process, which is essential for the high-precision fabrication of the diverse, non-standard glass shapes used throughout the project. This ensures a defect-free finish and long-term bonding reliability for the entire 130,000-square-meter glass surface.
In the event of glass fracture, our PVB film maintains the envelope of the building, keeping fragments adhered to the interlayer to prevent injury from falling glass. Our PVB technology significantly reduces the Sound Transmission Class (STC), mitigating the "wind-whistling" effect often found at altitudes above 400 meters. Fully tested for chemical compatibility with high-performance Low-E coatings and structural silicone sealants used in the 11 specialized facade sub-systems.
Our high-modulus PVB interlayers are formulated specifically for the demands of supertall building skins. By combining low yellowness with high mechanical strength, we provide a solution that meets the aesthetic vision of AS+GG Architecture while adhering to the rigorous safety requirements of the China Building Seismic Design Code.
