Ultra-Clear Smart Film 88% Transparency Scratch-Resistant Self-Adhesive PDLC Film
Ultra-Clear Smart Film 88% High-Transparency
Anti-Scratch Self-Adhesive
Advanced PDLC film delivering 88% light transmission—perfect balance of clarity and privacy for commercial applications. Scratch-resistant, self-adhesive, and energy efficient.
Peel, stick, and control with a button.
Key Features
High Transparency – Premium clarity for professional environments
Scratch-Resistant Coating – Withstands daily commercial use (5H hardness)
Commercial-Grade Adhesive – Bubble-free application on large glass surfaces
Rapid Switching – ≤30ms to clear (ON), ≤200ms to frosted (OFF)
Energy Efficient – Only 5W/m² power consumption at 60V AC
Technical Highlights
Thickness: 0.47mm (film + adhesive)
UV Blocking: ≥99% | IR Blocking: ≥60%
Operating Temp.: -30°C to 85°C (Ideal for most climates)
Step-by-Step Installation Guide
For Commercial/Architectural Use:
Surface Preparation
Use industrial-grade glass cleaner (isopropyl alcohol 90%+)
Measure glass and add 5mm margin for alignment
Precision Application
Remove PET liner in controlled environment (low dust)
Apply using J-roller for perfect adhesion on large surfaces
System Integration
Connect to commercial control systems (KNX, Crestron compatible)
Test switching: ON = 88% clarity | OFF = 94.5% haze

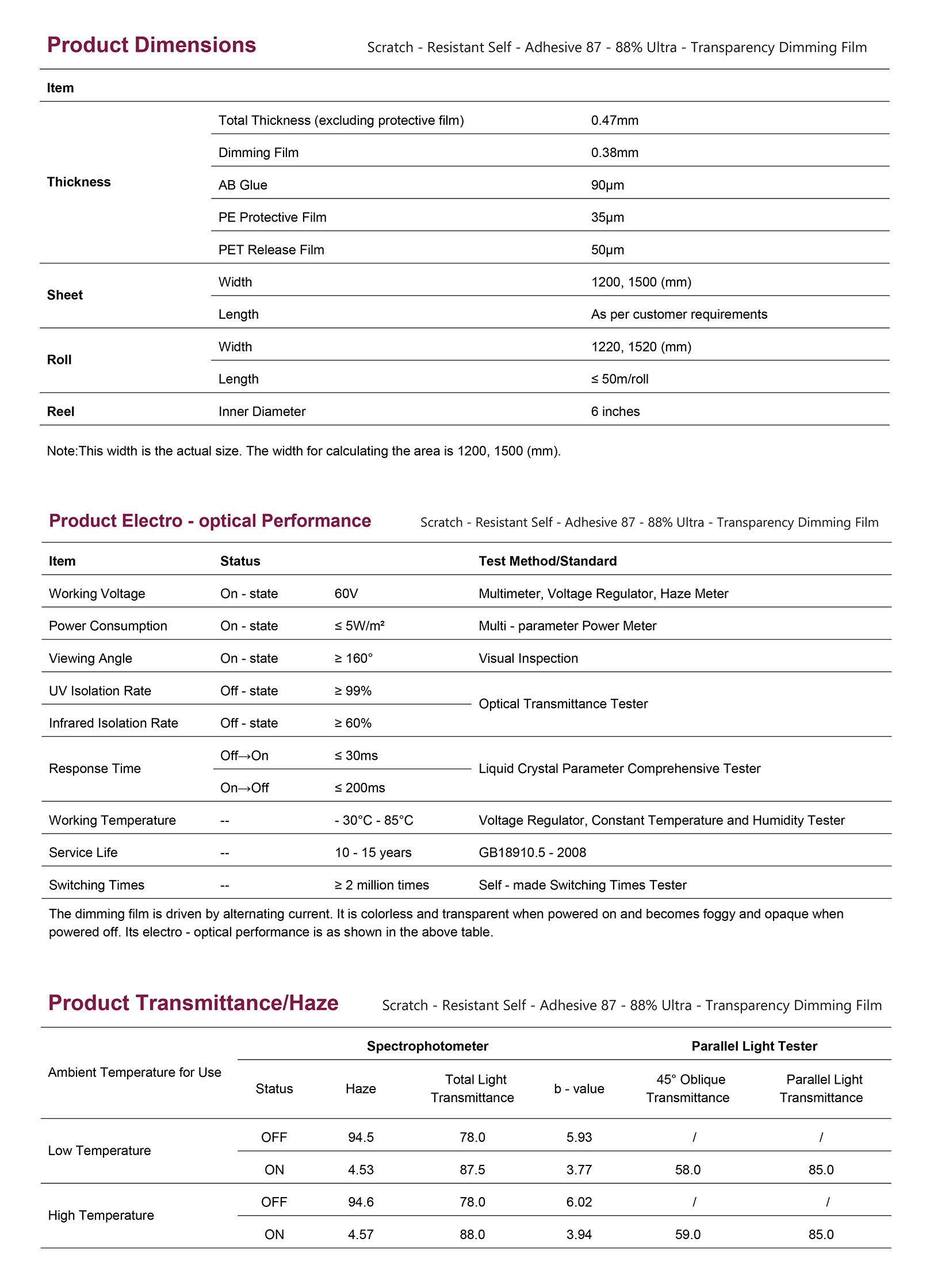

Technical Specifications
Physical Dimensions & Optical Performance
Applications
Corporate Spaces

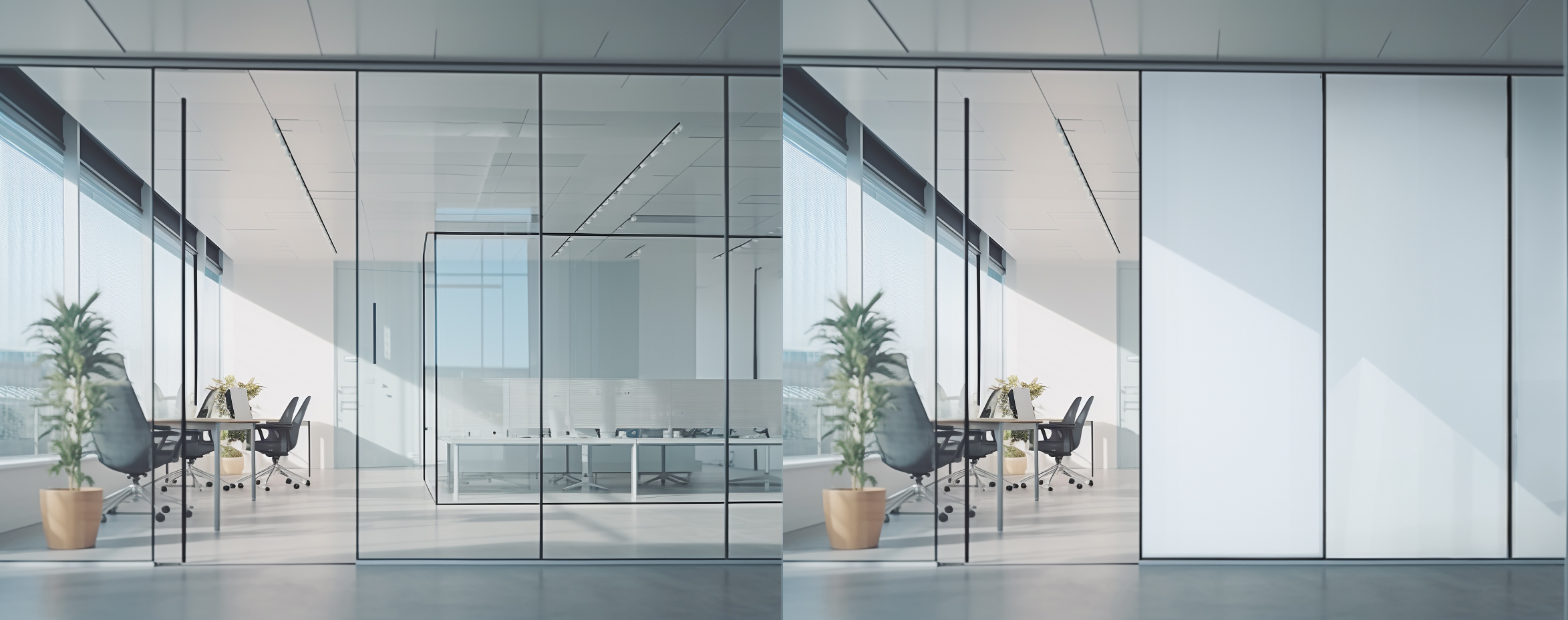

Conference Rooms: Transparent for openness → Instant privacy for meetings
Glass Partitions: Maintain office aesthetics while enabling privacy
Retail & Hospitality
Boutique Storefronts: Daylight clarity + nighttime privacy
Hotel Lobbies: Dynamic space division without visual barriers
Healthcare Facilities
Consultation Rooms: HIPAA-compliant privacy when needed
Why Choose This Film?
Cost-Effective Alternative – More affordable than 92% series
FAQ
Q: Can I reposition the film after sticking?
A: Yes—within 5 minutes. Use heat gun for older adhesive.
Q: Does it work on tempered glass?
A: Perfectly! Ideal for shower doors and skylights.
Q: How to clean?
A: Microfiber cloth + mild soap. Avoid abrasive cleaners.
Q: How does 88% compare to 92% film?
*A: 88% offers better value for most commercial applications where ultra-premium clarity isn't critical.*
Q: Can this film be cleaned with commercial cleaners?
A: Yes—safe with non-abrasive, ammonia-free cleaners.
Q: Minimum order quantity for commercial projects?
A: 50m² for volume discounts.
