High-Temperature Smart Film

Built for Extreme Conditions

The only PDLC film rated for 105°C continuous operation—perfect for industrial, automotive and architectural applications requiring heat resistance and privacy control.

Key Features

105°C Heat Resistance – 20°C higher than standard films
Scratch-Resistant Coating – Withstands industrial wear
Instant Switching – ≤30ms clear (ON), ≤200ms frosted (OFF)
99% UV Blocking – Protects against solar degradation
Industrial-Grade Adhesive – Bonds securely in high-heat environments

Technical Highlights

• Thickness: 0.47mm (film + adhesive)

• UV Blocking: ≥99% | IR Blocking: ≥60%

• Power Consumption: ≤5W/m² at 60V A

• Operating Temp.: -30°C to 105°C

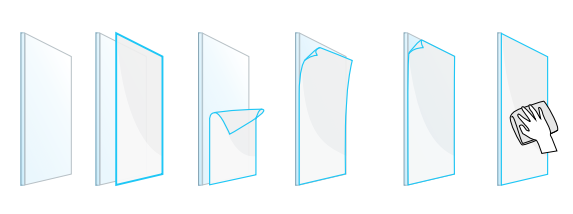

Step-by-Step Installation Guide

For Industrial Applications:

1. Surface Preparation

   • Degrease with industrial solvent (isopropyl alcohol 99%)

   • Pre-heat glass to 50°C for optimal adhesive bonding

2. High-Precision Application

   • Remove PET liner using high-temp release technique

   • Apply with steel roller (5kg pressure minimum)

3. System Integration

   • Connect to industrial 60V AC power supply

   • ON = 84% clarity | OFF = 94.6% haze

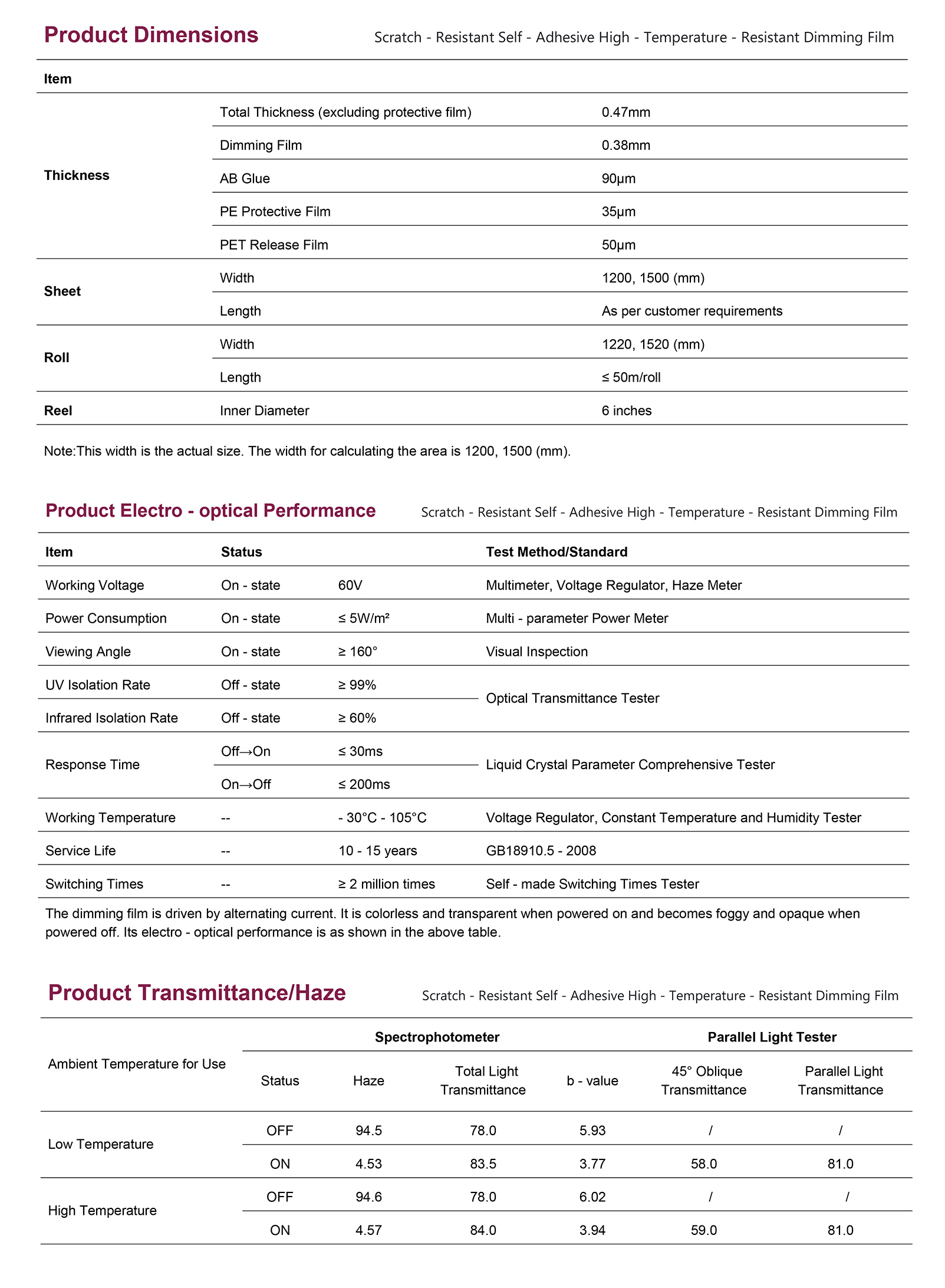

Technical Specifications

Physical Dimensions & Optical Performance

Thermal Performance (vs. Standard Film)

Parameter	Our Film	Standard Film
Max Temperature	105°C	85°C
Thermal Cycling	5,000 cycles	2,000 cycles
Adhesive Strength	4.5N/mm²	3.0N/mm²





---

Applications



Industrial Facilities

• Factory Skylights: Heat-resistant privacy control
• Process Windows: Withstands steam/chemical exposure

Automotive & Aerospace

• Engine Bay Viewing Panels: Heat monitoring + privacy
• Aircraft Windows: High-altitude temperature stability

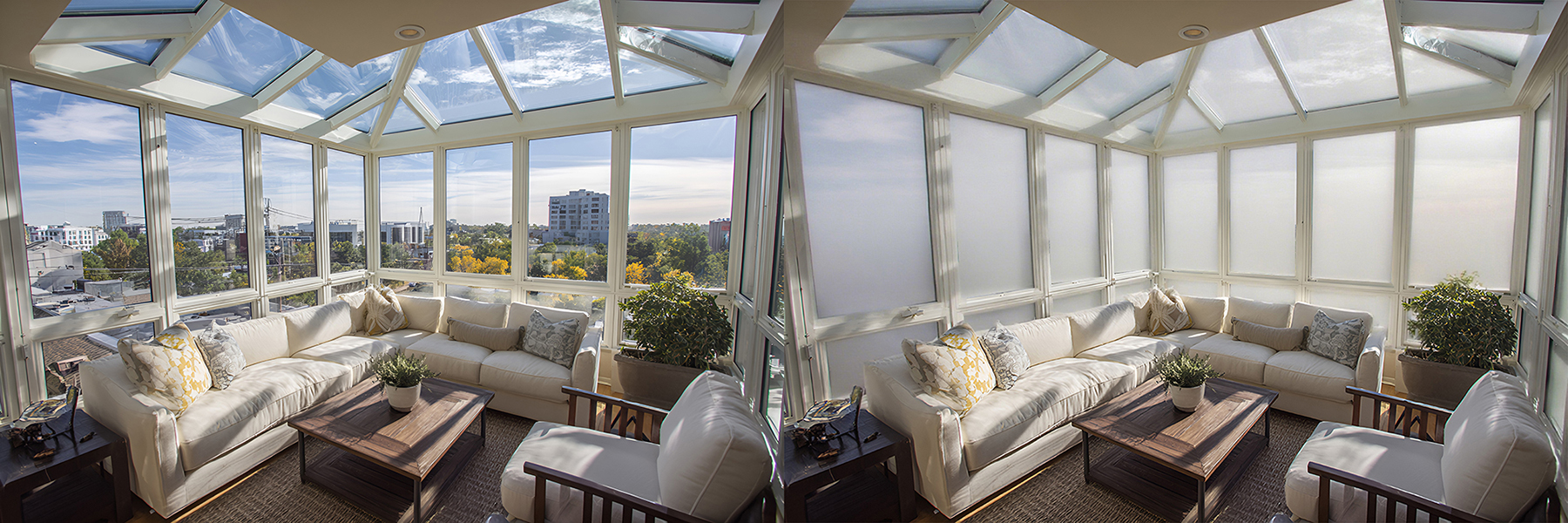

Architectural

• Desert Climate Buildings: Resists solar heat buildup
• Industrial Kitchen Partitions: Steam and grease resistance



---

Why Choose This Film?



Feature	Our Film	Standard PDLC
Transparency	85% (ON)	70-75%
Durability	Scratch-resistant	Prone to scratches
Installation	Self-adhesive	Professional required





---

FAQ

Q: How does it perform in direct desert sunlight?
A: Maintains full functionality at 105°C surface temps (tested in Dubai).

Q: Can it withstand steam cleaning?
A: Yes—rated for intermittent 120°C steam exposure.

Q: Minimum order for industrial projects?
A: 100m² for bulk discounts.
