PDLC Film Anti-Scratch Self-Adhesive
High-Clarity 85% Smart Film
Anti-Scratch Self-Adhesive
The only self-adhesive PDLC film with scratch-resistant coating, 85% light transmission when ON, frosted privacy when OFF.
Peel, stick, and control with a button.
Key Features
Scratch-Resistant Surface – Protective coating withstands daily wear
85% High Transparency – Clearest PDLC film on market (vs. avg. 70-75%)
Self-Adhesive Backing – AB glue layer for bubble-free application
Instant Switching – ≤30ms (ON), ≤200ms (OFF)
Energy Efficient – Only 5W/m² at 60V AC
Technical Highlights
Thickness: 0.47mm (film + adhesive)
UV Blocking: ≥99% | IR Blocking: ≥60%
Operating Temp.: -30°C to 85°C
Step-by-Step Installation Guide
How to Apply Your Smart Film
Prepare Surface
Clean glass with isopropyl alcohol (no streaks!)
Measure & cut film to size (use included PET release liner as guide)
Peel & Stick
Remove PET liner to expose AB adhesive
Align top edge first, then smooth downward with squeegee
Activate Power
Connect to 60V AC controller (included in kits)
Test switching: ON = Clear (83.5% transmittance) | OFF = Frosted (94.5% haze)

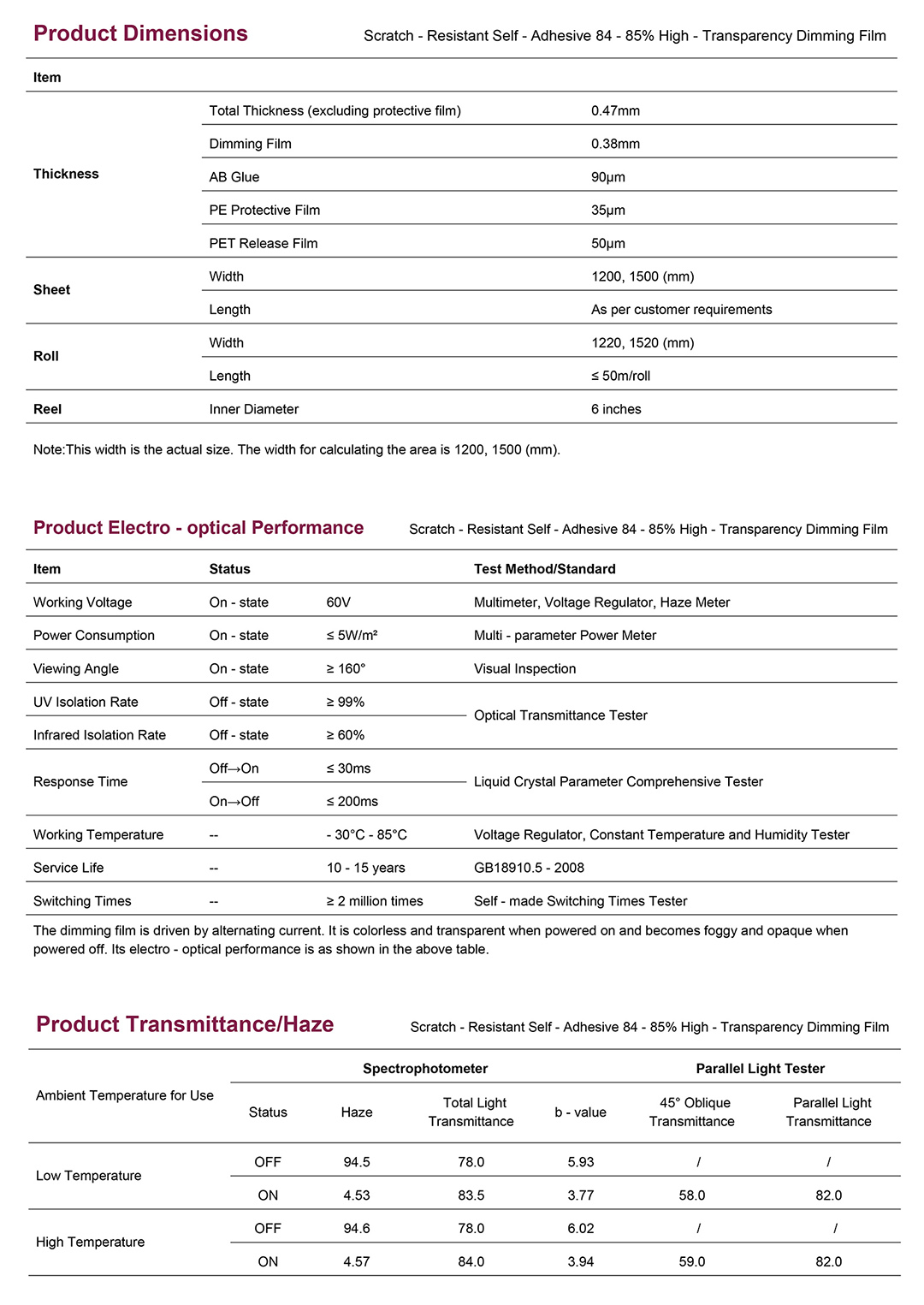

Technical Specifications
Physical Dimensions & Optical Performance
Applications
Residential
Bathroom Windows: Privacy when needed, clear views when not
Glass Railings: Safe + stylish (no visible brackets)

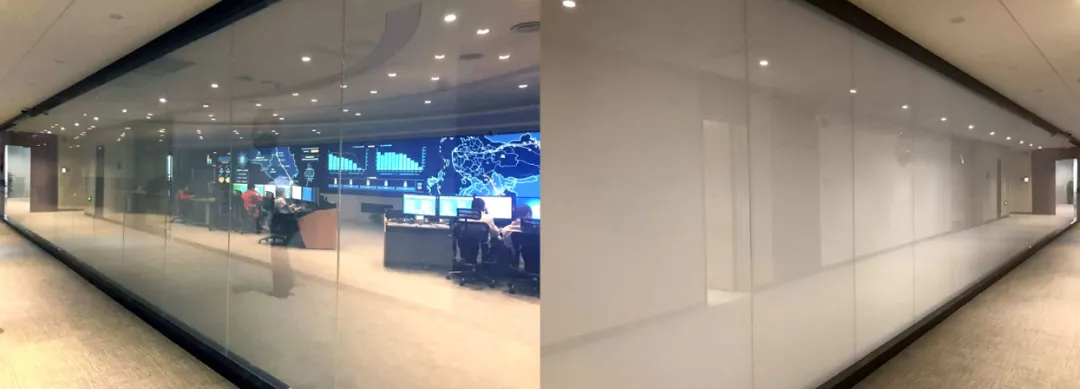

Commercial
Office Partitions: Open-plan transparency → instant meeting privacy
Retail Displays: Interactive product showcases
Automotive Sunroofs: Reduce glare without tinting laws
Why Choose This Film?
| Feature | Our Film | Standard PDLC |
|---|---|---|
| Transparency | 85% (ON) | 70-75% |
| Durability | Scratch-resistant | Prone to scratches |
| Installation | Self-adhesive | Professional required |
FAQ
Q: Can I reposition the film after sticking?
A: Yes—within 5 minutes. Use heat gun for older adhesive.
Q: Does it work on tempered glass?
A: Perfectly! Ideal for shower doors and skylights.
Q: How to clean?
A: Microfiber cloth + mild soap. Avoid abrasive cleaners.
