Solar-Control Photochromic Film
Solar-Control Photochromic Film
(Smart Light-Control Film)
Automatically adjusts tint to block heat & glare while keeping views crystal clear，no electricity or wiring required.
99% UV rejection | 85% IR blocking | Up to 80% cooling cost savings.

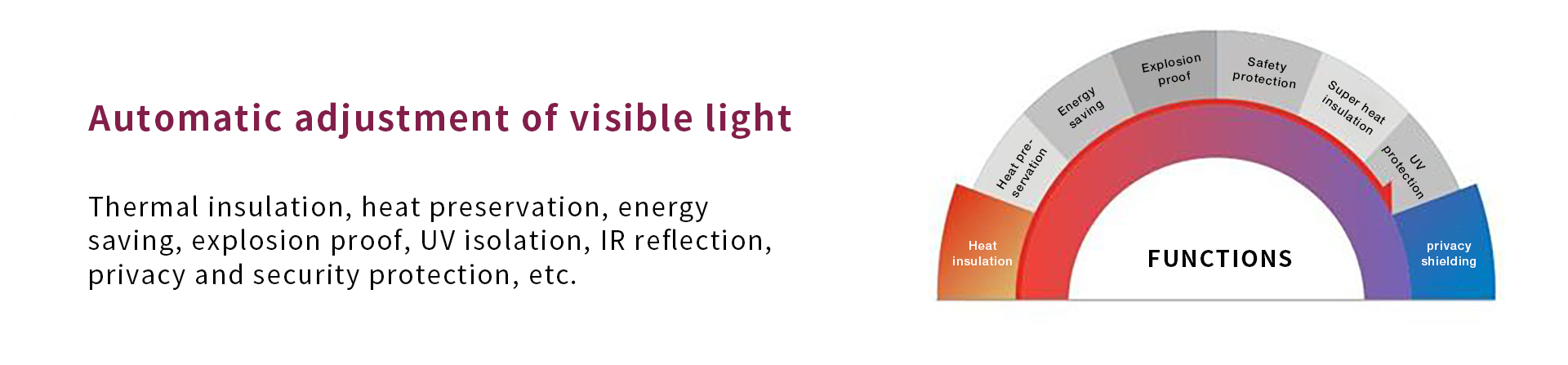

Key Features
Intelligent Light Sensing – Auto-tints from 76% to 5% VLT based on sunlight.
Ultimate Heat Rejection – Blocks 85% infrared (IR) & 99% ultraviolet (UV).
Energy Savings – Reduces AC costs by 160kWh/m²/year (vs. untreated glass).
All-Day Comfort – Eliminates glare while maintaining outdoor visibility.
Wide Applications – Homes, skyscrapers, cars, yachts, and aircraft.
How It Works
Sunlight Hits Film – Functional nanoparticles react to UV/heat.
Film Darkens – Visible light transmission drops (e.g., 76% → 35%).
Heat Blocked – IR & UV reflected, keeping interiors cool.
Returns to Clear – When sunlight fades, film becomes transparent again.

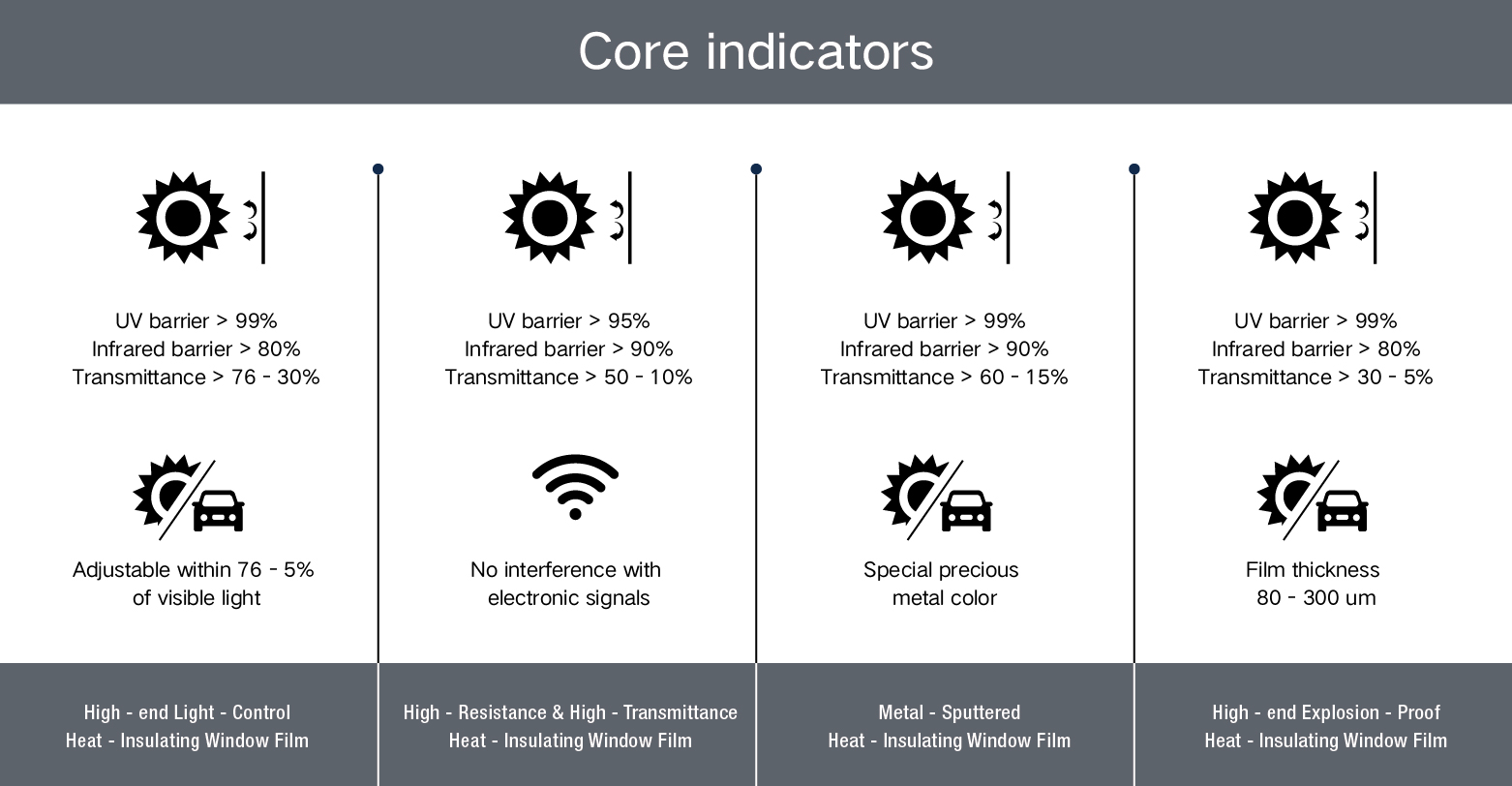

Technical Specifications

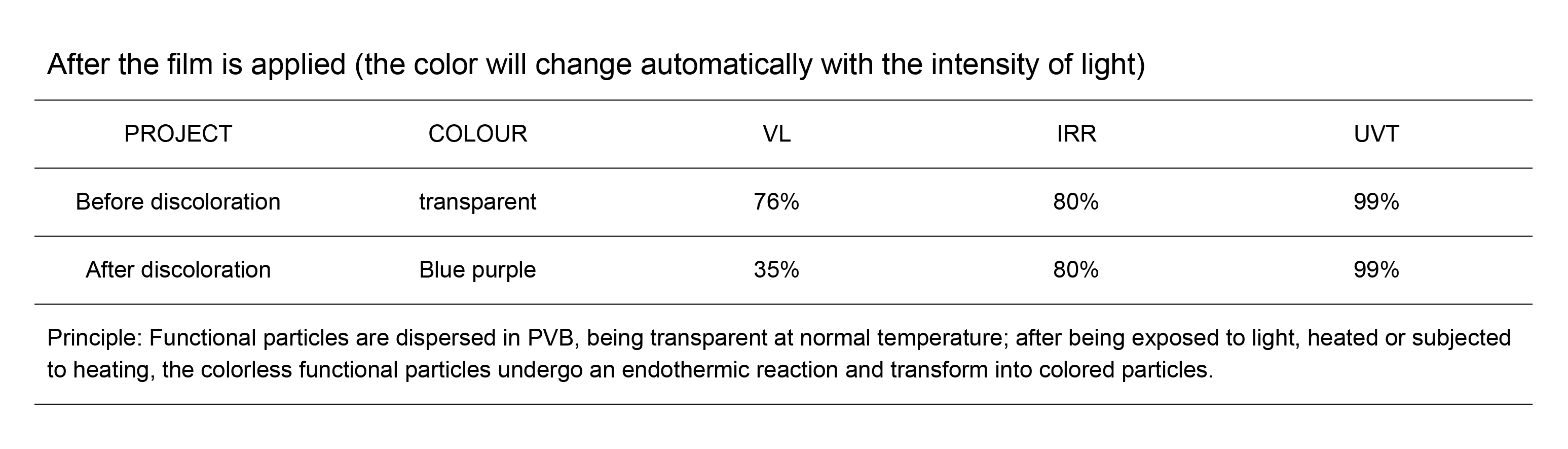

Performance Data

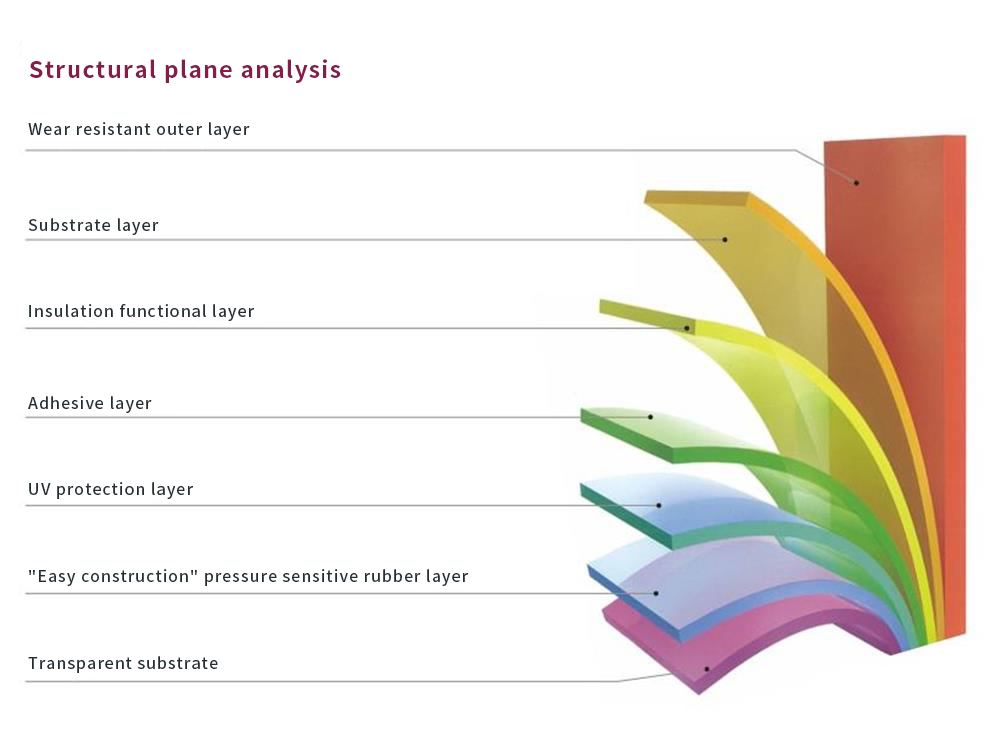

Material & Certifications
Thickness: 80–300 μm
Standards: EU REACH & ROHS certified
Fire Rating: Class A flame retardant
Applications

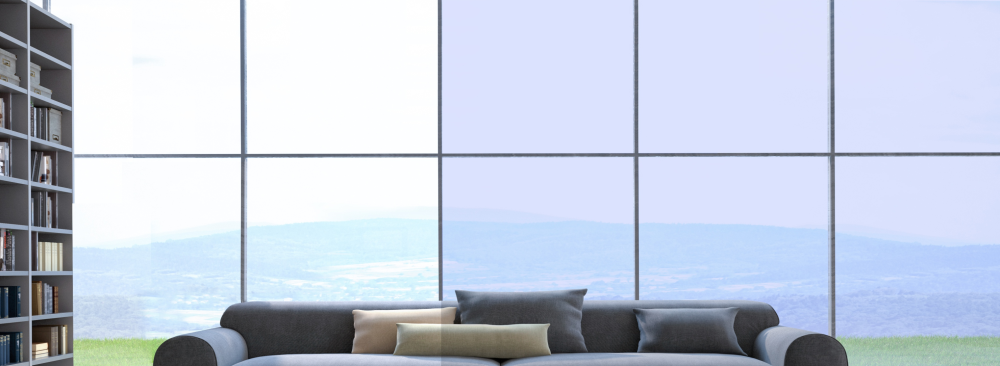

Green Buildings: Skylights, curtain walls (reduces HVAC loads without electricity).
Automotive & Marine：Side windows, sunroofs (no wiring needed).
Transportation：Train/aircraft windows (passenger comfort + energy savings).
Competitive Edge
Solar-Control Photochromic Film vs. Traditional Tint
| Feature | Shield Series | Standard Window Film |
|---|---|---|
| Power Source | None (sunlight-activated) | N/A (static tint) |
| Adaptability | Auto-adjusts to sunlight | Fixed darkness |
| UV Protection | >99% | 90-95% |
| Energy Impact | Reduces cooling costs by 20-30% | Minimal effect |
FAQs
Q: How long does the photochromic effect last?
A: 10+ years—tested for 2,000+ hours of UV exposure without degradation.
Q: Can it be applied to curved glass?
A: Yes! Flexible for convex/concave surfaces (e.g., car side windows).
Q: Does it work in cold climates?
A: Yes—activates at temperatures as low as -20°C (-4°F).
