    EVA-HT Outdoor Clear EVA Interlayer Film

    INNO-LGI-E-HT
    Specifications
    1、Transparency Grade: HT (High Transparency)
    2、Product Thickness: 0.38mm - 0.76mm
    3、Length: 50m - 100m
    4、Width: 600mm - 2600mm
    5、Material: Ethylene-vinyl acetate copolymer, no recycled content
    6、Sales Method: Factory direct sales
    Quantity:
    Contact Now
    add to cart

    EVA-HT Outdoor clear EVA interlayer film

    Developed by Innolamin, represents a major technological innovation that surpasses existing technology and significantly enhances the outdoor performance of laminated glass.

    Specifications
    1、Transparency Grade: HT (High Transparency)
    2、Product Thickness: 0.38mm - 0.76mm
    3、Length: 50m - 100m
    4、Width: 600mm - 2600mm
    5、Material: Ethylene-vinyl acetate copolymer, no recycled raw materials

    Main Characteristic:
    1.Exceptional fluidity.
    2.Crystal-clear transparency, making it a perfect choice for laminated glass in architectural design projects.
    3.Superior adhesion with minimal water absorption, ensuring no delamination even with exposed edges.
    4.Outstanding durability against outdoor elements, coupled with a high rate of UV protection.
    5.User-friendly for both operation and processing.

    I. Company Profile

    Innolamin is an integrated sales department with a family development of 30 years in the glass industry, holding numerous partnerships. Our company specializes in the production of laminated glass interlayer materials for laminated glass including EVA, BISN PVB, and ionoplast interlayer film IPL.We have our own EVA interlayer, PVB film and SGP film. It also owns specialty glass processing factories like Haojing Group, and equipment manufacturers like Hanneng, which produces tempered furnaces and high-pressure autoclaves. As an integrated supplier for the glass industry chain and corresponding auxiliary materials industry, our products encompass investment estimation, factory design, equipment procurement, technical support, and material supply. Our goal is to provide customers with professional implementation of deep glass processing projects, technical guidance, and services, striving to be a loyal partner to our clients.

    II.  Application Scope

        Outdoor Architectural Transparent Laminated Glass EVA interlayer
    • High-Rise Building Guardrail Glass
      High-transparency outdoor EVA bare-edge laminated glass railings offer robust safety and maintain a modern appearance and transparency in areas like balconies, terraces, and rooftop gardens of high-rise buildings. High transparent EVA film material is weather-resistant and maintains long-term clarity, capable of withstanding UV rays and harsh weather conditions.
    • High-Rise Residential and Apartment Balconies: These railings provide safety and an expansive view, enhancing the living experience for residents.

    ​​​​​

    III.Product Specifications


    Item codeThicknessWidthLengthPackage
    EVA-HT0.38up to 2650100vacuum bag+bubble wrap+waterproof composite kraft paper (optional cardboard/plywood case)
    0.580
    0.7650
    1.1435
    1.5230



    IV.Product Performance Parameters

    Test itemTest methodEVA-HTEVA-UV-HT
     VL TransmittanceISO-14782>90.5%>90.5%
    HazeT/ZBH 013-2019<0.25%<0.25%
    UV blocked rate280-380nm>60%>99%
    Tensile strengthISO 527-3>14MPa>14MPa
    Adhesion with glassISO-8510>75N/cm>75N/cm
    Elongation at breakISO 527-3＞800%＞800%
    Cross-linking rateT/ZBH 013-2019>85%>85%
    Water absorptionASTM D570≤0.1%≤0.1%
    High temperature test 4hrs 100℃EN 14449/EN1SO12543No visible change
    Humidity resistance 85℃ 85%RH 1000hrsENISO12543Haze appeared just 2.5cm from the edge without bubbles or delamination
    UV radiation test UVA340 60℃ 65%RH 2000hrsEN14449/EN572Yellowing index: Δ<1
    Pendulum test (height: 1200mm)EN14449/EN 12600Qualified
    Ball impact peeling resistance (height: 4m)GB-15763.3-2009Qualified
    Note:the information and relevant data listed in this article are established in the laboratory of the company's technical department,and their contents are correct based on the truth. However, we will not make any statement or guarantee on the integrity or accuracy of the listed information and data.We provide the content of this article on the condition that it is for the user's reference only,and before using it,decide whether the information and data are suitable for their own purpose of use.In no event shall we be liable or liable for damages of any nature whatsoever arising out of the use of or reliance on the content of this document or the products mentioned herein.


    V.Product Shelf Life

    12 months, If you want to know more about how to make EVA laminated glass,please go to the next page.


    VII. Key Points and Notes for Processing Technology

    Preparation work before laminating

    1. Clean and thoroughly dry the glass, ensuring there are no particles, dust, or oil stains on the glass surface, and prepare EVA film and other intermediate materials.
    2. After the glass has been placed into the silicon bag, switch on the vacuum pump for 3-5 minutes until the vacuum reaches -0.1MPa (-100KPa), then close the furnace door and start heating.
    3. Both autoclaves and simple laminating ovens can be used for processing EVA laminated glass. The following is the processing procedure for a simple laminating oven

    Heating stepHeating temp.Keeping timeVacuumUnloading temp.
    1st step vacuuming60℃≥20mins≤-0.095Mpa-
    2nd step heating125℃≥50mins≤-0.095Mpa＜50℃

    The mentioned temperatures refer to the surface temperature of the glass. These laminating parameters are suitable for a laminated glass structure of 5mm+0.38EVA+5mm. Specific adjustments should be made based on differences in laminating equipment, temperature and humidity variations, glass thickness, and intermediate materials.

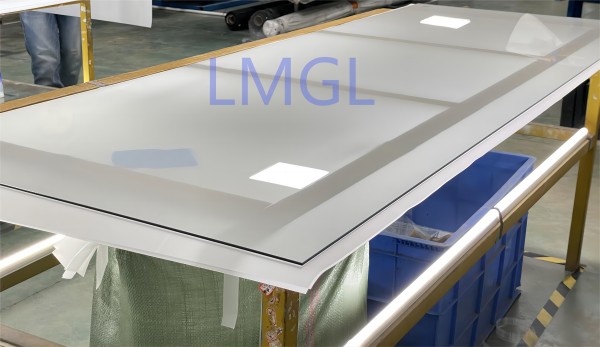

    how to make laminated glass,how to use EVA film,fabric glass,mesh glass

    Processing Notes

    1. Before using EVA interlayer film, fully understand the product introduction provided by our company and choose the appropriate product type according to the specific application area.
    2. According to the laminating temperature, process, and heating time provided by our company, produce glass samples (with an area not less than 0.5m²), and conduct quality and color phase inspections on the samples to confirm compliance with quality requirements before mass production.
    3. When using EVA interlayer film to produce other laminated glass products, understand the physical and chemical properties of the adhesive materials, conduct relevant verification tests before mass use to ensure that the interlayer film does not have adverse reactions with the adhesive materials (including but not limited to delamination, bubbles, whitening, discoloration, yellowing, fading, etc.).
    4. Applicable materials include but are not limited to the following categories:
      • Inorganic materials (glass, marble, ceramics, metals, etc.) and their printed products.
      • Organic materials (PMMA, PC, PET, PVC, etc.) and their printed products.
      • Other intermediate materials (silk, cotton cloth, paper, honeycomb panels, etc.) and their printed products.
    5. When installing laminated glass, if silicone sealant, structural adhesive, and other sealing materials are needed, ensure their compatibility with EVA interlayer film. Some sealing materials may have adverse reactions with the interlayer film, causing delamination, foaming, or blackening of the laminated glass periphery. Chemical detergents may also have adverse reactions with EVA interlayer film.

    VIII. Storage and Transportation

    1. Temperature below 25°C, humidity below 50%.
    2. Avoid direct sunlight, waterproof, moisture-proof, keep away from heat sources, and do not squeeze.
    3. Unused film should be properly stored. It is recommended to make glass samples with an area not less than 0.5m² before next use to confirm the product quality.
    4. After unpacking, pay attention to dustproof and moisture-proof, and use it up within 3 months.
