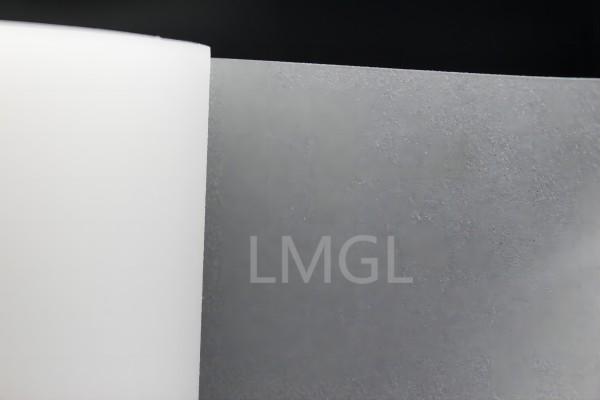

Optical Clear EVA film for Low-iron Glass
INNO-LGI-E-LI-OT is a cutting-edge, ultra clear EVA film(Optical Transparency EVA film) developed by Innolamin specifically for low-iron laminated glass.
This product boasts superior transparency and exceptional impact resistance when used in laminated glass. It is ideal for applications requiring pristine clarity, such as ultra-clear glass laminates and wired glass. EVA-LI-OT is perfect for jewelry display case glass, display cases, exhibition glass and other situations where high transparency in laminated wire glass is critical.
1、Transparency Grade:OT (Optical Transparency)
2、Product Thickness: 0.38mm - 0.76mm
3、Length: 50m - 100m
4、Width: 600mm - 2600mm
5、Material: Ethylene-vinyl acetate copolymer, no recycled raw materials
Main Characteristic:
1、Suitable for ultra-high definition laminated glass applications both outdoors and indoors.
2、Ultra-high visible light transmittance and ultra-low haze, suitable for ultra-clear laminated glass, with no whitening or fogging, providing excellent visual clarity.
3、Low processing temperature: achieves ultra-high transparency at just 120 degrees.
4、Excellent adhesion to glass, inorganic glass, PET, and other materials.
II. Application Scope
Low-iron laminated glass film: Specifically designed for laminating ultra-clear glass, highlighting the crystal-like texture of the glass without showing noticeable haze even under strong light.

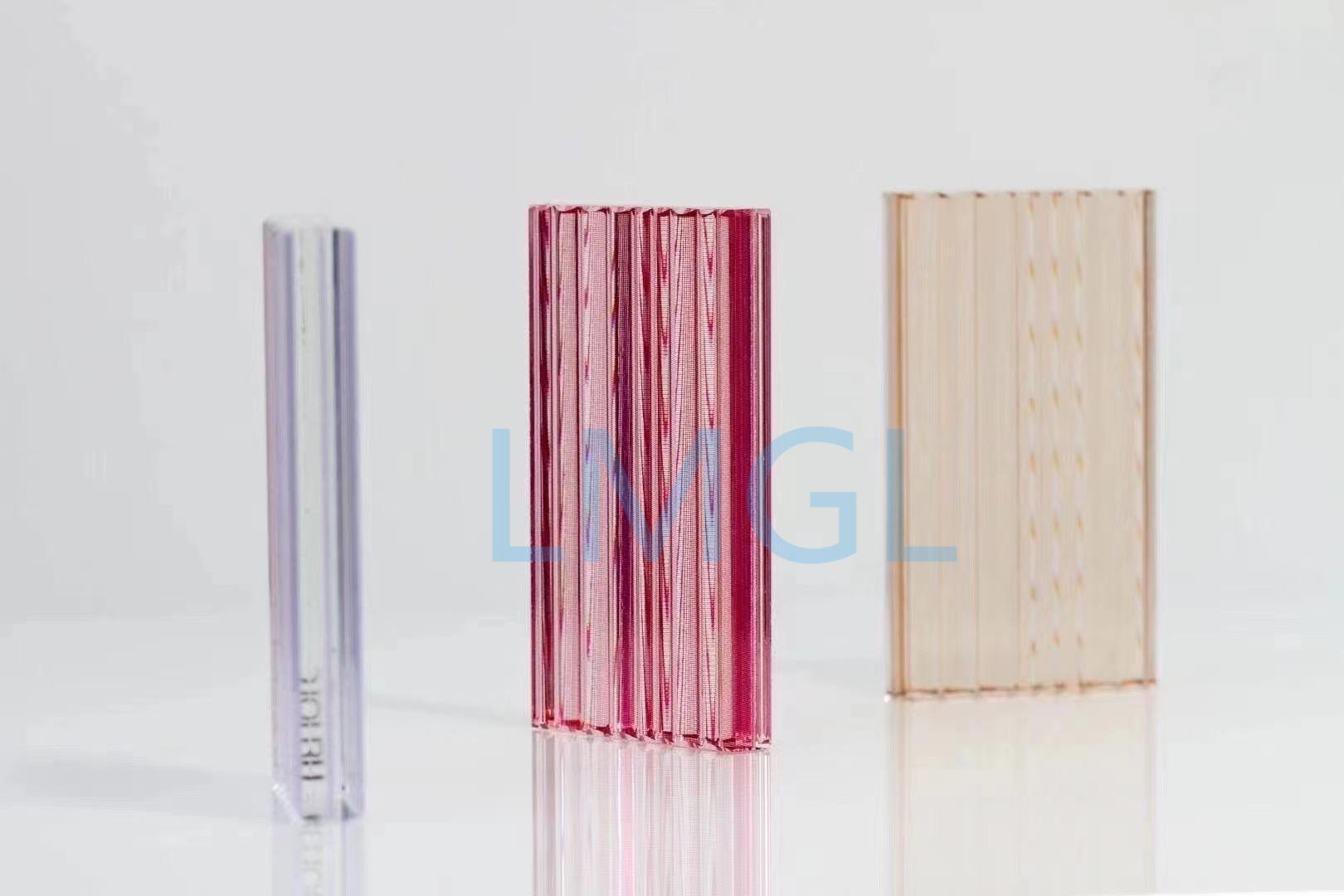

·Jewelry Display Case Glass(use super clear EVA film)
·Exhibition Glass
·High-End Luxury Glass(use Extra Clear EVA Film)
III.Product Specifications
| Model | Thickness (mm) | Width (mm) | Roll Length (m) | Packaging Specifications |
|---|---|---|---|---|
| EVA-LI-OT380 | 0.38 | Up to 2600 | 100 | Vacuum bag + shockproof film + composite kraft paper (Optional extra plywood case) |
| EVA-LI-OT760 | 0.76 | Up to 2600 | 50 |
IV.Product Performance Parameters
| Test item | Test method | EVA-LI-OT |
|---|---|---|
| Transmittance | ISO527-3 | >91% |
| Haze | T/ZBH 013-2019 | <0.15% |
| UV blocked rate | 280-380nm | / |
| Tensile strength | ISO527-3 | >17MPa |
| Adhesion with glass | ISO-8510 | >95N/cm |
| Elongation at break | ISO527-3 | ≥800% |
| Cross-linking rate | T/ZBH 013-2019 | >85% |
| Water absorption | ASTM D570 | ≤0.1% |
| High temperature test 4hrs 100℃ | EN 14449/EN1SO12543 | No visible change |
| Humidity resistance 85℃ 85%RH 1000hrs | ENISO12543 | Haze appeared just 2.5cm from the edge without bubbles or delamination |
| UV radiation test UVA340 60℃ 65%RH 2000hrs | EN14449/EN572 | Yellowing index: Δ<1 |
| Pendulum test (height: 1200mm) | EN14449/EN 12600 | Qualified |
| Ball impact peeling resistance (height: 4m) | GB-15763.3-2009 | Qualified |
Note:the information and relevant data listed in this article are established in the laboratory of the company's technical department,and their contents are correct based on the truth. However, we will not make any statement or guarantee on the integrity or accuracy of the listed information and data.We provide the content of this article on the condition that it is for the user's reference only,and before using it,decide whether the information and data are suitable for their own purpose of use.In no event shall we be liable or liable for damages of any nature whatsoever arising out of the use of or reliance on the content of this document or the products mentioned herein.
